New Desktop Rotary

Hi Guys,

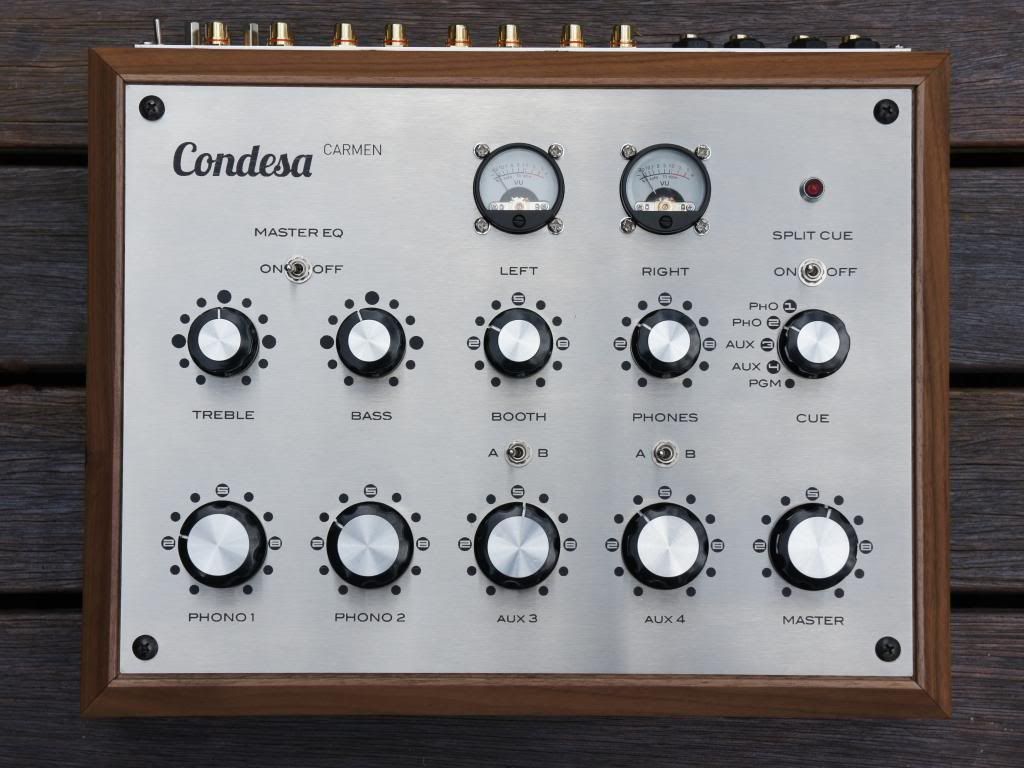

Heres my new 100% discrete rotary desktop mixer, fully balanced booth and master outputs, RK27 pots, multi voltage external power supply. Not forgetting the walnut case and brushed steel face plates.

Thanks Mehdi.

http://www.facebook.com/condesaDJmxers





Reply With Quote
  #2
Old 11-29-2012, 04:52 PM
vinyl_junkie vinyl_junkie is offline
Registered User

Join Date: May 2005
Location: South East Kent, UK
Posts: 1,837
I love the looks of that! Hopefully it sounds as good as it looks

The only thing I can see people potentially moan about is the master knob being next to aux 4

I remember from your other posts you liked using no feedback in your designs, does this share the same principles?
__________________
--The future scares me, any chance of a lift back to the past any one?--

Last edited by vinyl_junkie : 11-29-2012 at 04:59 PM.
Reply With Quote
  #3
Old 11-29-2012, 05:13 PM
Mehdi Mehdi is offline
Registered User

Join Date: Jul 2012
Posts: 30
Yes same audio principles.
All the channel knobs & masters are spaced out so you won't knock them by accident. It works well when you need to ride the master volume whilst mixing, but yes you have to get used to the layout.
Reply With Quote
  #4
Old 11-29-2012, 05:15 PM
vinyl_junkie vinyl_junkie is offline
Registered User

Join Date: May 2005
Location: South East Kent, UK
Posts: 1,837
I like it mate, if I was to sell my Bozak and down size a bit this would be really high up on my list :-)
__________________
--The future scares me, any chance of a lift back to the past any one?--
Reply With Quote
  #5
Old 11-29-2012, 05:16 PM
paul1979 paul1979 is offline
Registered User

Join Date: Feb 2010
Location: Dublin,Ireland
Posts: 56
looks great medhi,cant wait to hear reports, just wondering why is there only 2 band eq?
Reply With Quote
  #6
Old 11-29-2012, 05:28 PM
Mehdi Mehdi is offline
Registered User

Join Date: Jul 2012
Posts: 30
I'm keeping the EQ simple, the next version will have a 3 band iso in to tho.
Reply With Quote
  #7
Old 11-30-2012, 12:00 AM
1620_nz 1620_nz is offline
Registered User

Join Date: Jul 2012
Location: Auckland, New Zealand.
Posts: 59
Beautiful, brushed steel + walnut = FTW! Looks nice.

Looks really 'warm' too, might have to put some vacuum tubes in there on a future version.

Would be cool to see a 3 band iso and a 19" chassis.
Reply With Quote
  #8
Old 11-30-2012, 07:08 PM
Mehdi Mehdi is offline
Registered User

Join Date: Jul 2012
Posts: 30
Thanks!
A complete tube version would be amazing!
what ever I offer in desktop will also be available in rack version.
Reply With Quote
  #9
Old 12-01-2012, 10:20 AM
Laurin Laurin is offline
Registered User

Join Date: Dec 2005
Location: Germany
Posts: 471
Really really like the look!

Price?
__________________
Facebook
Reply With Quote
  #10
Old 12-03-2012, 05:02 AM
Mehdi Mehdi is offline
Registered User

Join Date: Jul 2012
Posts: 30
I've just sent you prices via PM
Reply With Quote
  #11
Old 12-04-2012, 07:42 AM
ves ves is offline
Registered User

Join Date: Aug 2010
Location: Athens
Posts: 85
looks beautiful now if there was a matching iso to go with it.............
ps. i cannot tell the spacing of the knobs. they seem very close to each other
Reply With Quote
  #12
Old 12-04-2012, 07:59 PM
Mehdi Mehdi is offline
Registered User

Join Date: Jul 2012
Posts: 30
Matching ISO is a great idea...
Spacing from one knob to another is 5.5cm so there spaced out nicely.
Reply With Quote
  #13
Old 12-15-2012, 08:56 PM
Mehdi Mehdi is offline
Registered User

Join Date: Jul 2012
Posts: 30
Here's Carmen in Black!





Reply With Quote
  #14
Old 12-15-2012, 11:50 PM
1620_nz 1620_nz is offline
Registered User

Join Date: Jul 2012
Location: Auckland, New Zealand.
Posts: 59
thats awesome, looks straight out of the 60s or 70s, like some tube fx unit pink floyd would have used on dark side of the moon.

hope this rotary is a success for you.
Reply With Quote
  #15
Old 12-17-2012, 04:46 AM
Mehdi Mehdi is offline
Registered User

Join Date: Jul 2012
Posts: 30
Thanks, its going well so far! it's Retro Modern, lol!
Reply With Quote
  #16
Old 12-17-2012, 01:44 PM
charles0322 charles0322 is offline
Registered User

Join Date: Nov 2007
Location: Montreal
Posts: 697
Send a message via AIM to charles0322
Quote:
Originally Posted by Mehdi
Yes same audio principles.
All the channel knobs & masters are spaced out so you won't knock them by accident. It works well when you need to ride the master volume whilst mixing, but yes you have to get used to the layout.

Looks cool and love the wood, I would have a hard time with the layout. Its a challenge to get things lined up perfect in a mixer, I ve tried several times to design something only to find out I didnt leave enough room for something. Im sure I would get used to this eventually, I would just prefer the layout of the DJR400 style.

Congrats on the piece & happy mixing!

Next mixer for me is one of Pern's Bozure designs
Reply With Quote
  #17
Old 12-18-2012, 05:53 AM
Mehdi Mehdi is offline
Registered User

Join Date: Jul 2012
Posts: 30
Wink

I've been using the mixer for a month and i'm not going to change its layout it works very well, its just different (original).
The Faceplate is 300mm wide and the channel and master faders all have 60mm distance between them.
Its nice to have this mixer compared to the DJR and Pern's designs, But carmen is different, theres no IC's in her audio path.
Forgive me if i'm wrong but Carmen is the only Discrete Desktop Rotary mixer on the market at the moment.
Although she looks dope, its all about a big dynamic warm sound with lots of headroom!
Reply With Quote
  #18
Old 12-18-2012, 10:05 PM
rs_ rs_ is offline
Registered User

Join Date: May 2008
Posts: 226
Where are the Flanger and Beat Repeat buttons? Not seeing them...

rs
Reply With Quote
  #19
Old 12-20-2012, 07:42 AM
Mehdi Mehdi is offline
Registered User

Join Date: Jul 2012
Posts: 30
it needs a LCD display too...
Reply With Quote
  #20
Old 12-20-2012, 07:46 AM
grizz grizz is offline
Registered User

Join Date: Dec 2003
Location: germany
Posts: 517
touchscreen
Reply With Quote
  #21
Old 12-22-2012, 02:32 AM
Reticuli Reticuli is offline
Registered User

Join Date: Jul 2004
Location: Dayton, Ohio, USA
Posts: 930
Nice. All you need is a pair of headphones with a mono/stereo switch to go with it and you're all set. You might still have some issues with cue/prgm being out of whack to hear one or the other without a blend knob, but you can probably compensate some other way (scoot the phones off the ear a little, etc).
